P20 Dusty Harp Pickup for most 32-40 string lever harps*:
- 28.5" long
- Additional 7.5" of lead
- Minimum soundbox length (internal): 30"
- 4 piezo elements
*Certain large-stature lever harps are built more like pedal harps, with similar heavy construction and high string tension. The Lyon & Healy Prelude and Troubadour, Camac Mademoiselle, and Salvi Ana are good examples. Although they have levers and not pedals, in all other respects they are much closer to a pedal harp in sound and design, and it is recommended to use the P30 pickup for the best results.

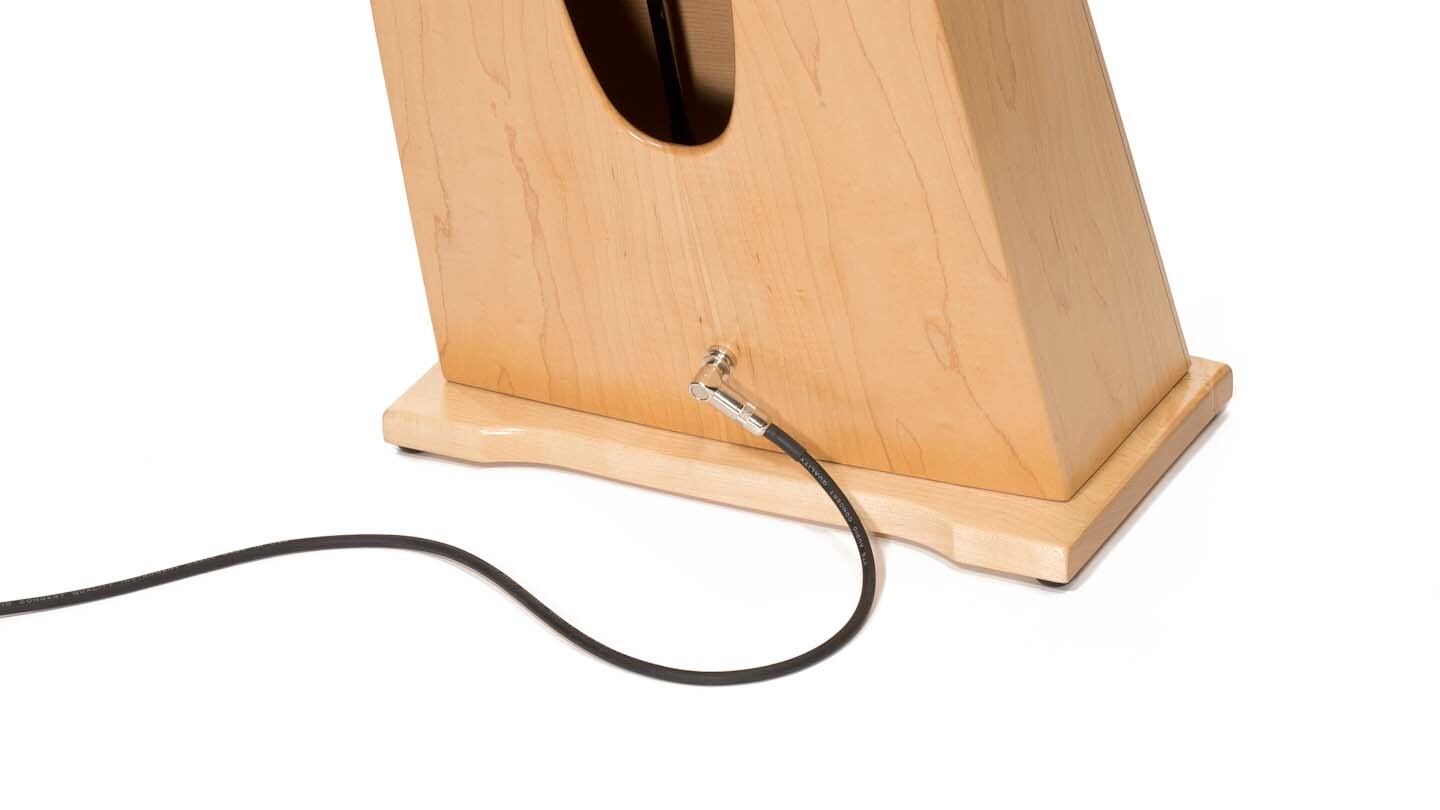

Installation involves attaching mounting clips to the internal braces or sides of the harp, snapping the cable harness into the clips, gluing the elements in place, and drilling a hole to mount the jack in the back of the harp. There are detailed instructions and a template for placing the elements in Dusty Strings harps. If you have a different type of harp, use the template as a starting point, but it's a good idea to experiment with the element placement to confirm the best-sounding attachment points. The only tool you'll need is a ½-inch brad point drill bit, available at most hardware stores. If you prefer not to drill a hole, you can simply connect to the jack through the bottom soundhole of your harp, or add our Jack Clamp for a secure and removable way to anchor the jack.
Please note that this pickup produces the best possible sound only when the elements are super-glued to the back of the soundboard using the glue provided in the kit. If necessary, it can be removed without harm to the harp, but the elements are fragile and likely to be damaged in the process. It is meant to be a long-term investment in the versatility and value of your harp and is not designed to be removed and transferred to another instrument. If you choose to use a different type of adhesive for a less permanent installation, you will not get the sound quality and performance this pickup is known for.
If you're curious about the installation process, you can download and read the P20 installation instructions here.
